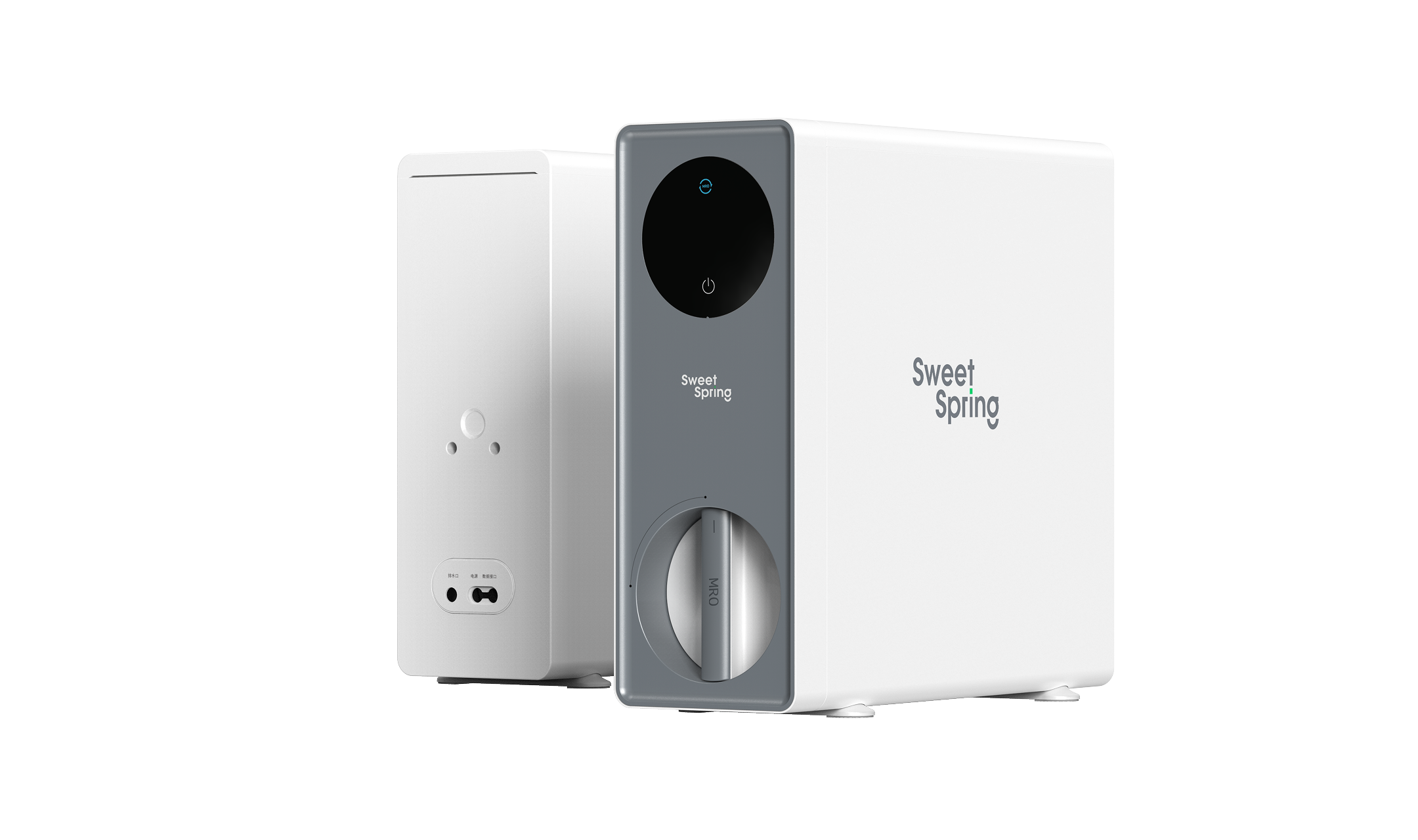

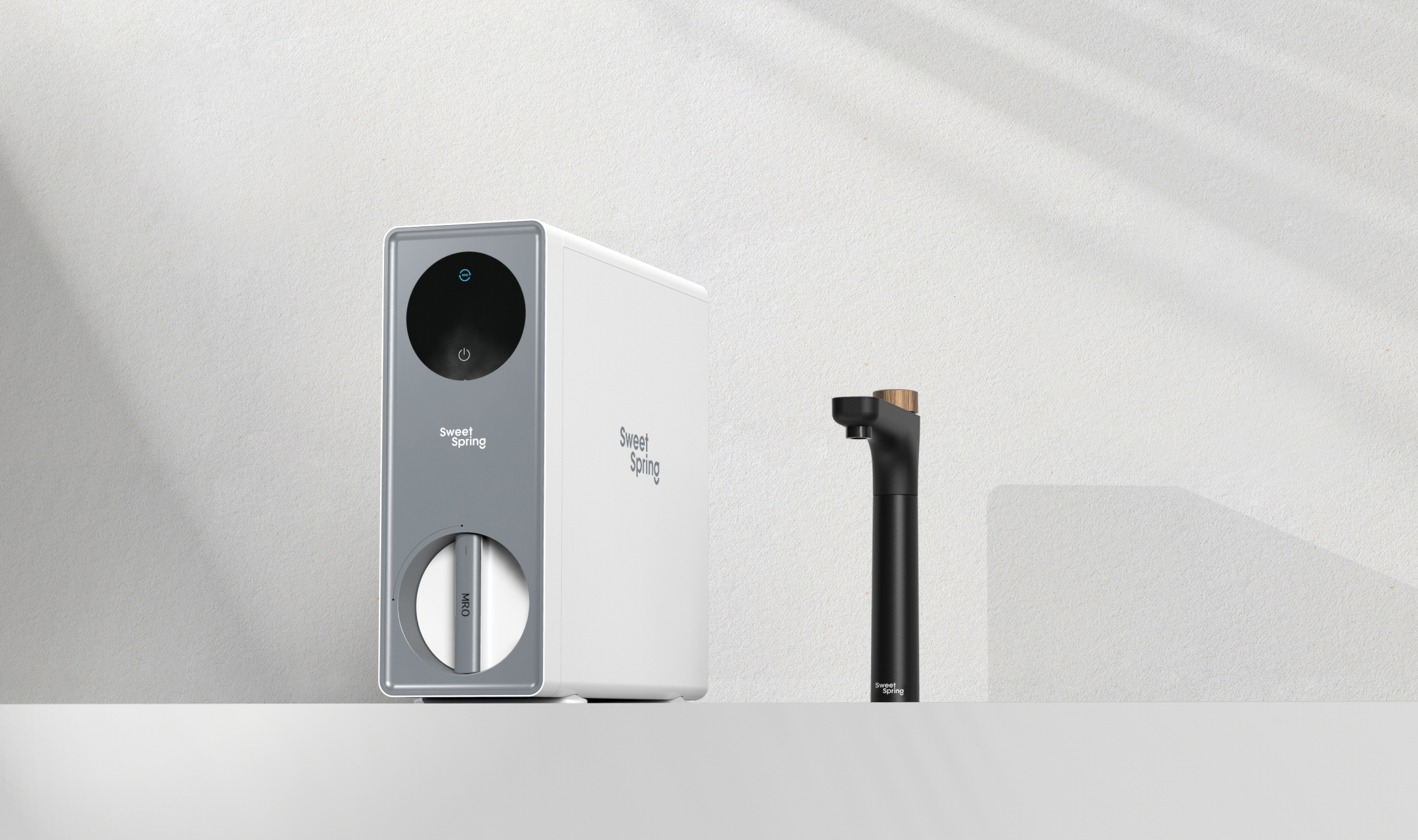

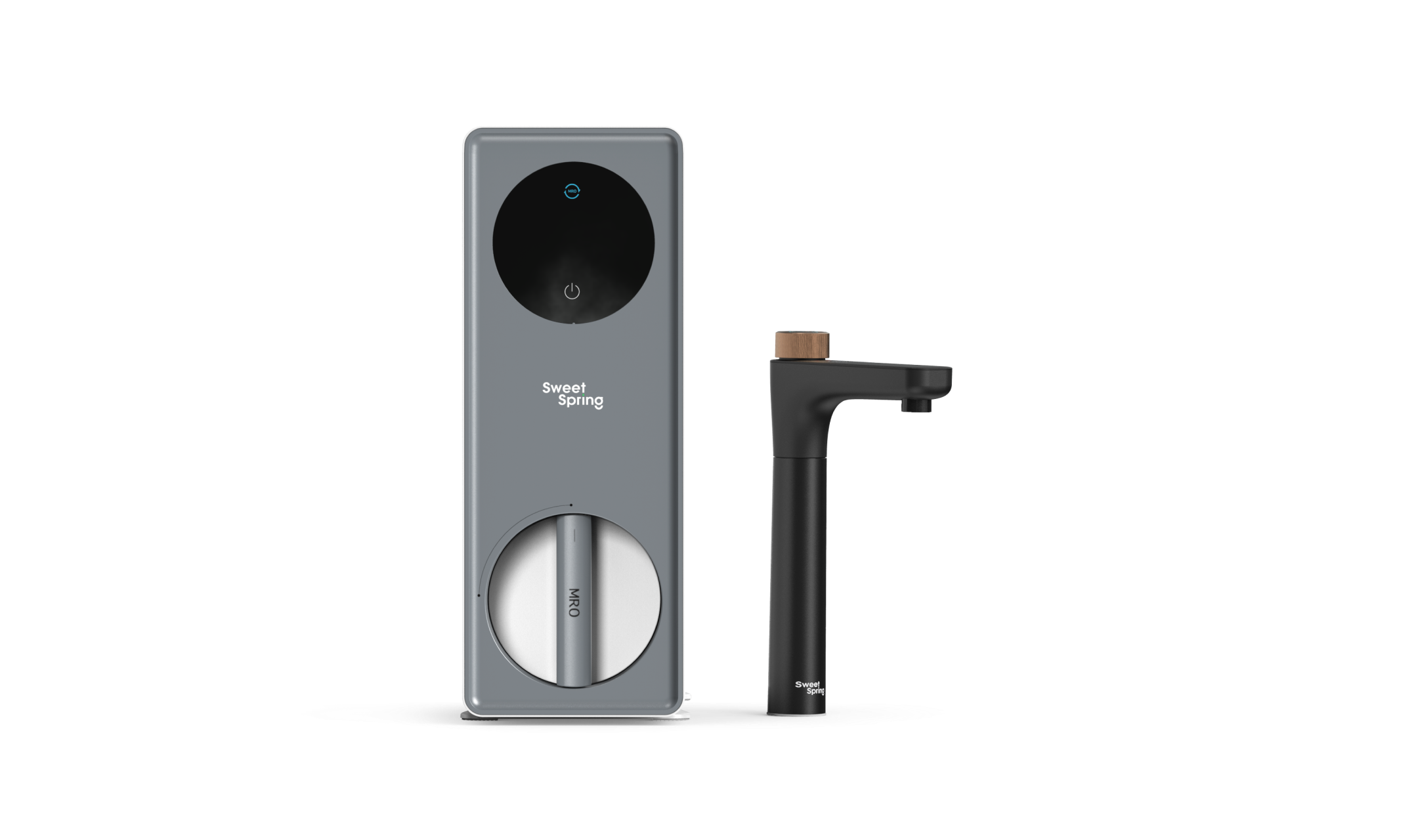

Purification & Heating Unit

Instant Heat Cube

Five-stage fine filtration effectively removes volatile phenols, arsenic, cadmium, hexavalent chromium, lead, etc. from water. It provides pure and fresh 0-stagnant water, with a strong hot water flow reaching 2.0L/min—no need for the whole family to wait! With silky body lines + modern aesthetic color schemes, it has a small size and no installation limitations.

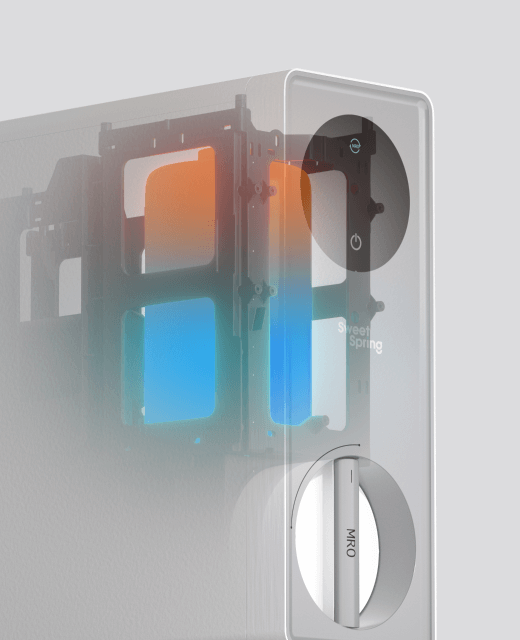

  • High-Capacity Hot Water

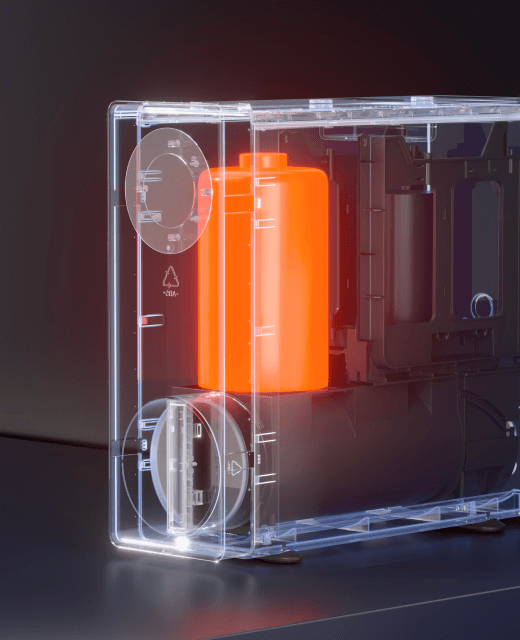

    Food-grade SUS heating tank with high flow rate for simultaneous multi-point use.

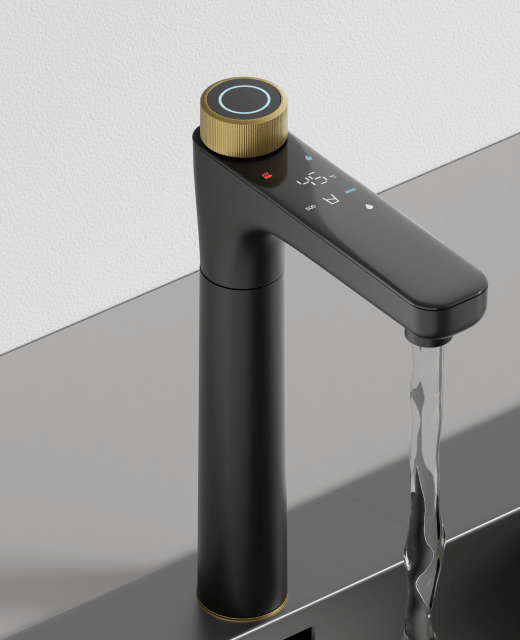

  • 7-Temperature Presets
    Precise 45℃-95℃ adjustment with instant tea/milk modes (one-touch operation).
  • Smart Safety System
    Auto shut-off after 48H standby with water refresh and instant restart.

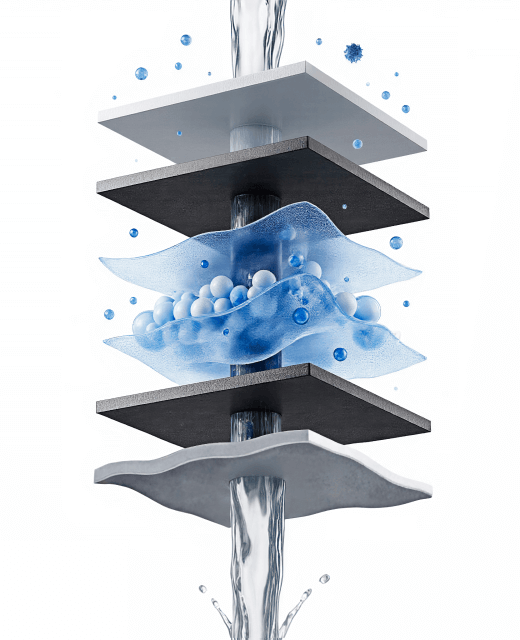

  • Multi-Stage Filtration
    Removes sediment/rust/chlorine, heavy metals/microorganisms/odors (zero carbon particles).

Tech Specs

Model SSR-R400H-X SSR-R600H-X SSR-R800H-X
Water Supply Public Mains Public Mains Public Mains
RO Water Flow Rate 1.05L/min 1.58L/min 2.1L/min
Rated Filtration Capacity 4T 6T 6T
Water Recovery Rate & Efficiency China New Standard Grade 1 Efficiency China New Standard Grade 1 Efficiency China New Standard Grade 1 Efficiency
Rated Power 1355W 1375W 1400W
Inlet Water Pressure 0.1 - 0.4MPa 0.1 - 0.4MPa 0.1 - 0.4MPa
Pressure 0.42 - 0.8MPa 0.42 - 0.8MPa 0.42 - 0.8MPa
Inlet Water Temp 5-38℃ 5-38℃ 5-38℃
Power 220V, 50Hz 220V, 50Hz 220V, 50Hz
Size 450 x 170 x 436.5mm 450 x 170 x 436.5mm 450 x 170 x 436.5mm
  • * Water Output Quality: Complies with China's "Hygienic Safety and Functional Evaluation Standards for Drinking Water Treatment Devices - Reverse Osmosis Systems" (2001)
  • * Product Standard: Q/HMKJ 01-2024
  • * Ministry of Health Water Permit No. (2025) 01-0034
  • * Note: Product specifications are for reference only and may vary depending on local water conditions and specific applications.
